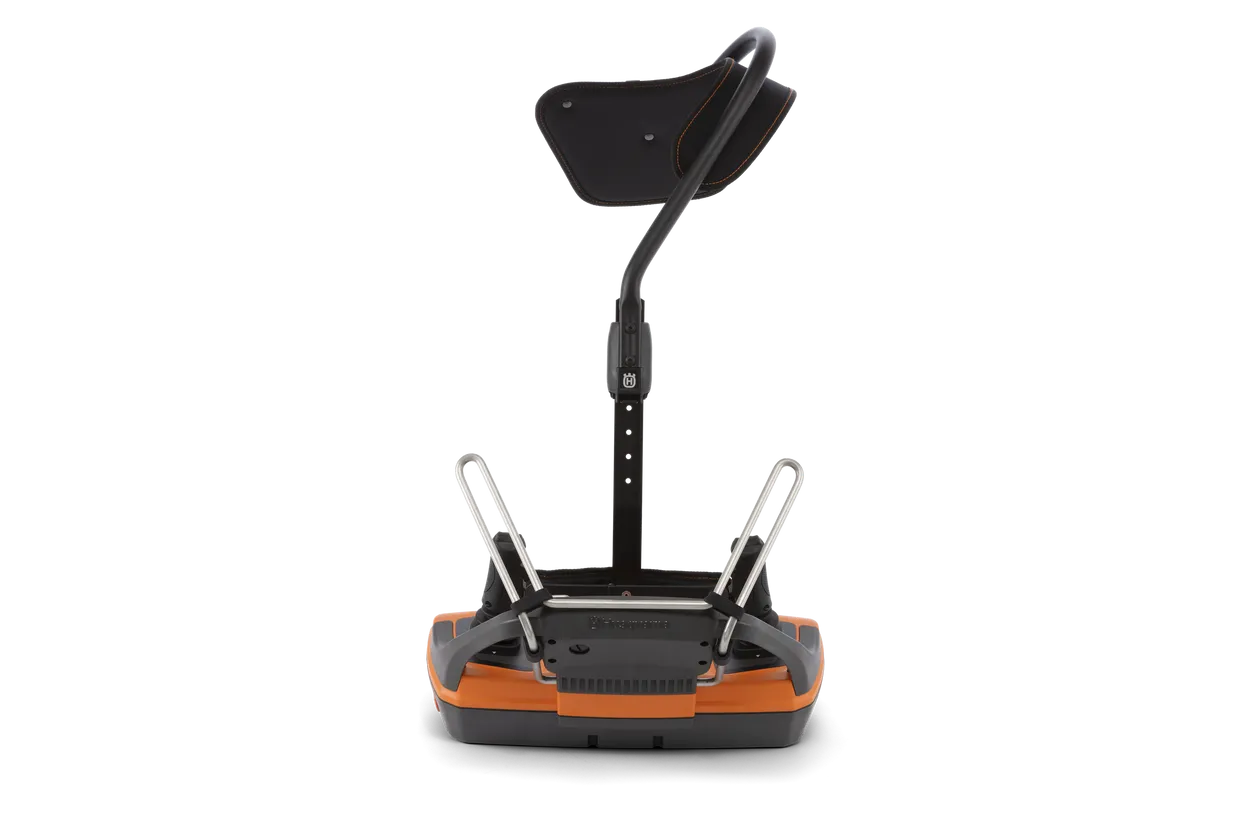

Husqvarna DXR 145
| Reach (up) | 4.4m |
|---|---|
| Weight (complete product w/o side packed articles) | 985kg |
| Rated input power | 18.5kW |
| Hydraulic oil flow | 52l/min |
Description:
- Increased performance
- Safer operation
- Superior remote control
- Live operating surveillance
- Superb power-to-weight ratio
- Fits through all normal doorways
- 360 degrees rotatable arm
- Compact design and low weight
- Precise positioning
- Superior stability
- Stable arm with low maintenance
- Comfortable operation
- Flexible set-up of individually parameters
- High work efficiency
- Easy transportation
- Easy access for servicing
- Superb illumination
- Automatic greasing of the breaker
- Hydraulic feature P1 installed from factory

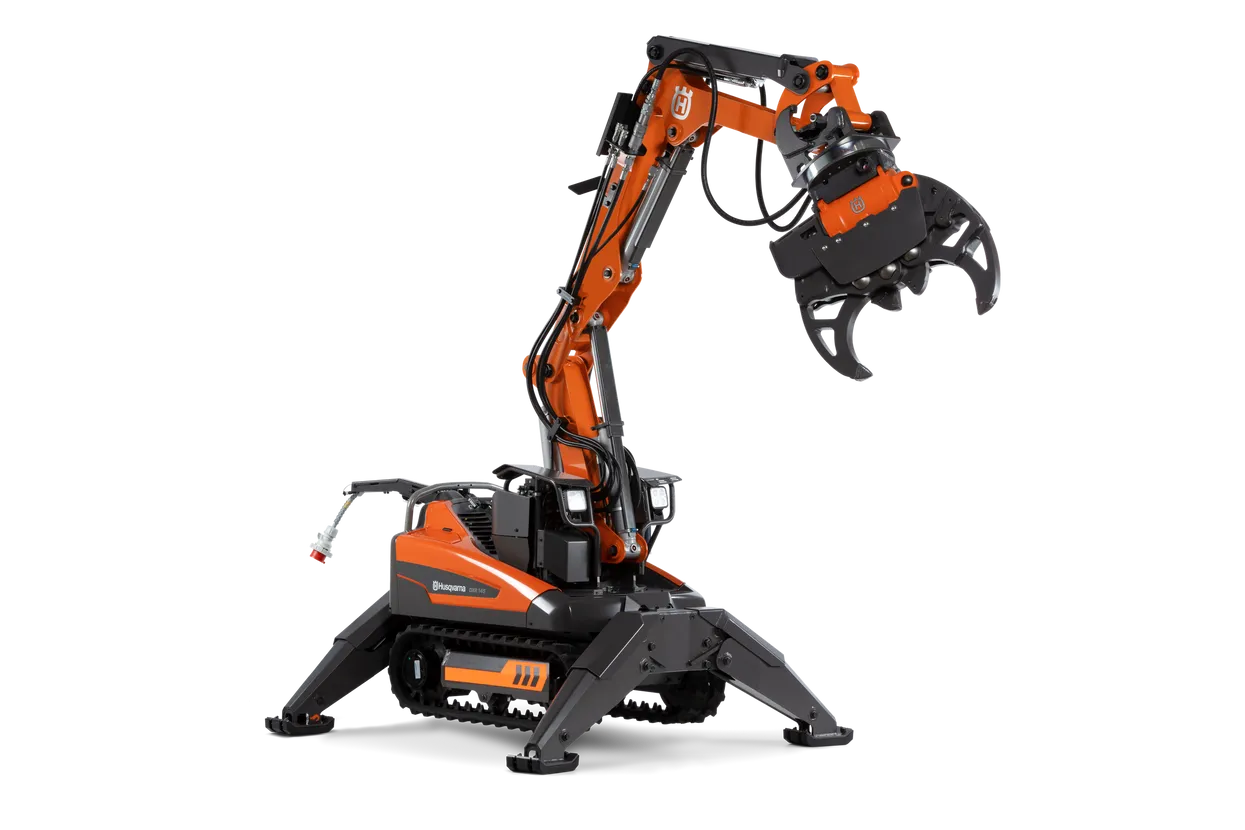

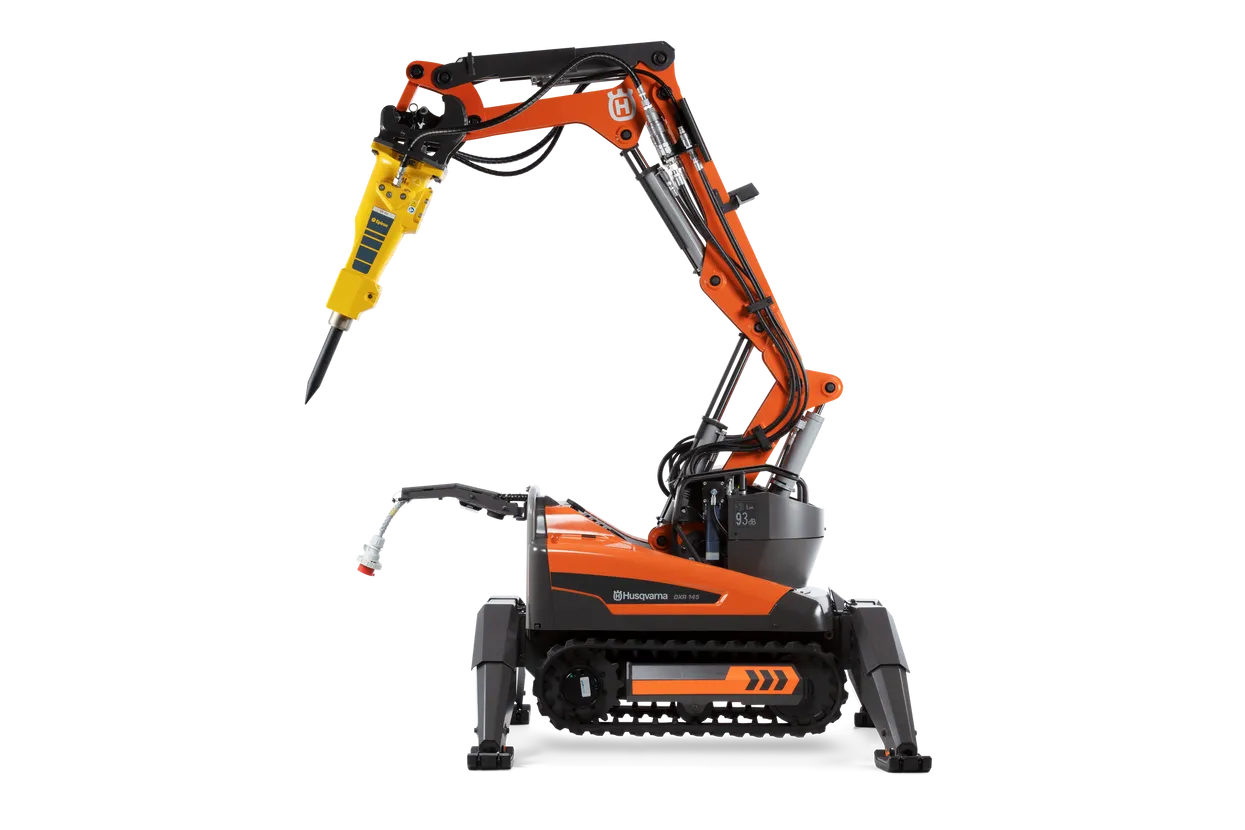

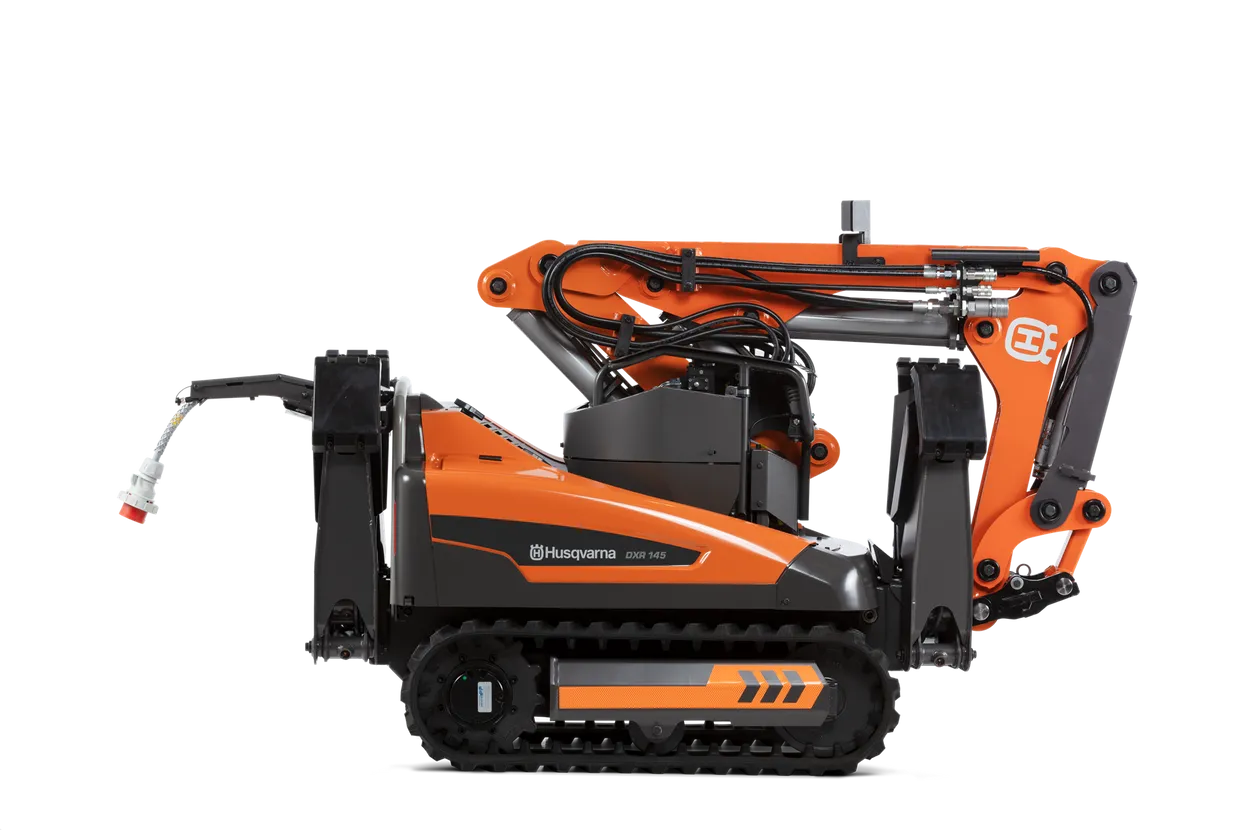

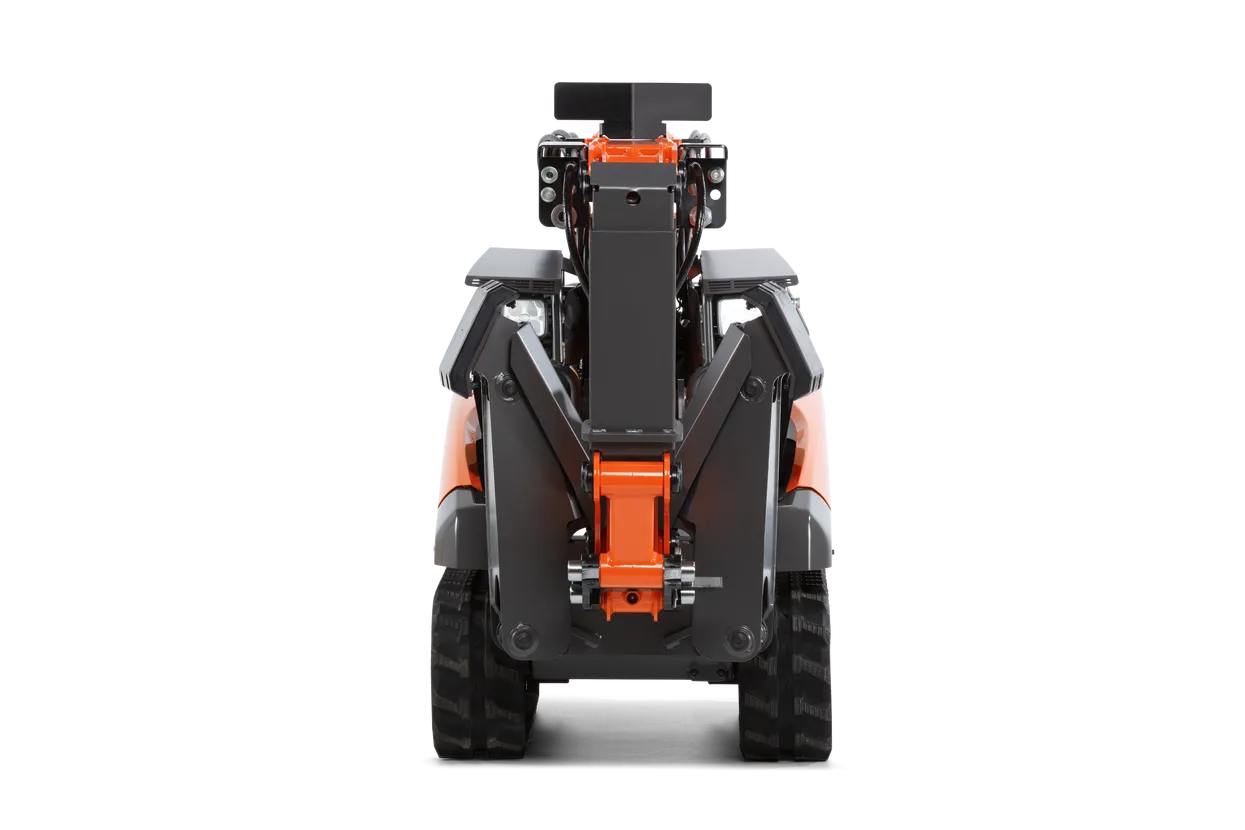

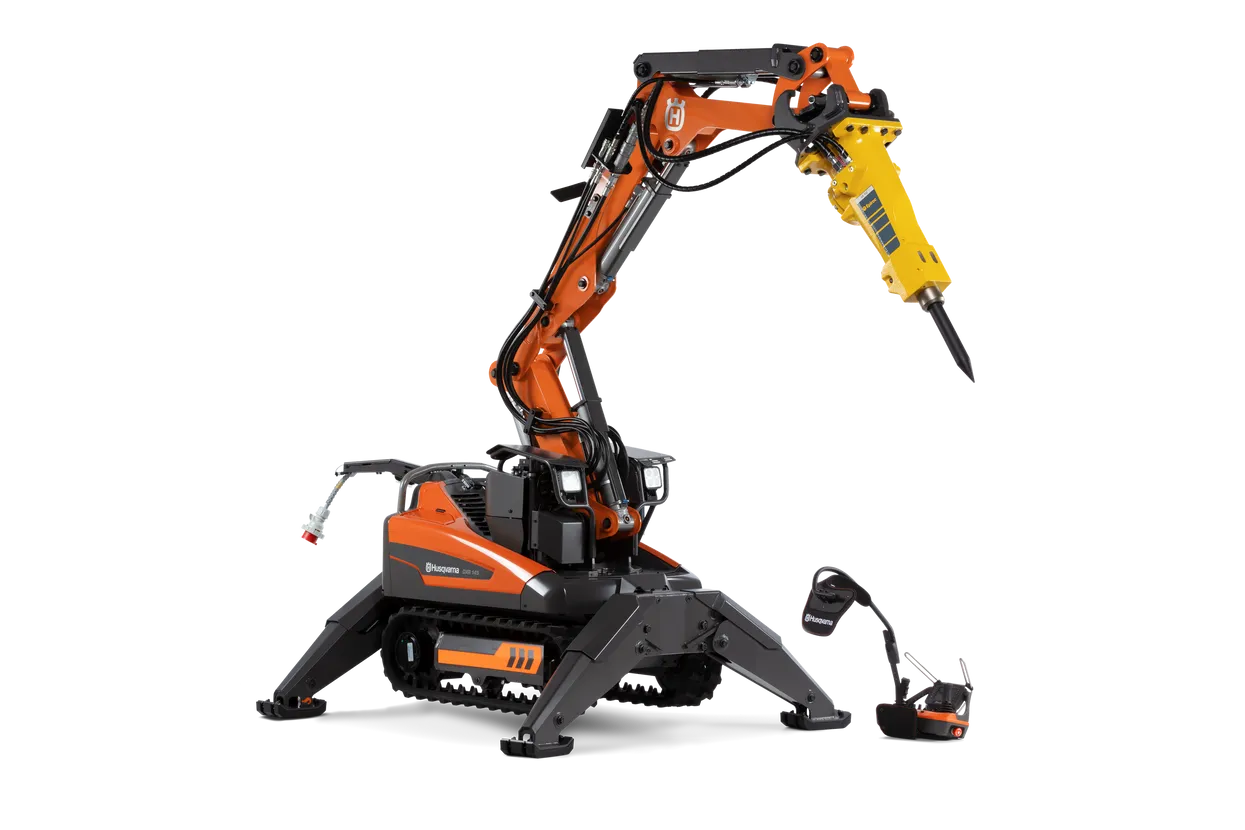

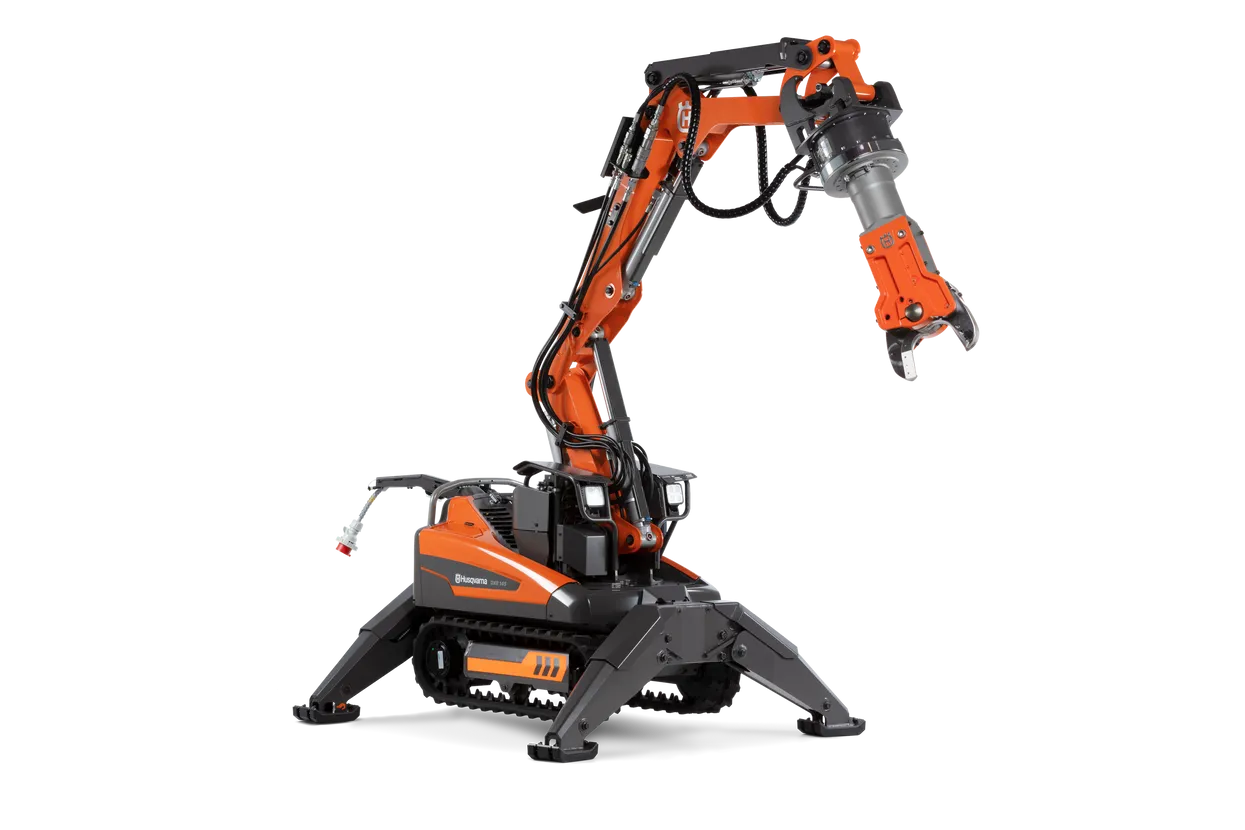

DXR 145 is our most compact remote-controlled demolition robot with a 360 degrees rotatable arm. With 18.5 kW power and low weight it is a powerful machine specially developed for demolition work in cramped spaces where the job requires a maneuverable and compact machine with high demand of demolition efficiency. Equipped with a superior remote control for safer operation and easy maneuverability. DXR 145 is a versatile demolition robot for the construction and process industry. Combine it with a variety of tools like breaker or our compact and versatile crushers and steel shearer. For DXR 145 we recommend our extended hydraulic function and cylinder protection package as additional feature. The package can be ordered as an accessory or installed directly from the factory.
Quantity:
Specifications:
|
All specifications DXR 145 |
DXR 145 DEMOLITION ROBOT DXR 145 18.5 kW 970 50 97‑01 |
DXR 145 DEMOLITION ROBOT DXR 145 18.5 kW | P1 970 50 97‑03 |
|---|---|---|
| Motor | ||
| Rated input power | 18.5 kW | 18.5 kW |
| Frequency | 50/60 Hz | 50/60 Hz |
| Battery | ||
| Battery type | Li-Ion | Li-Ion |
| Hydraulics | ||
| Oil capacity | 28 l | 28 l |
| Hydraulic oil flow | 52 l/min | 52 l/min |
| Hydraulic pressure, max | 250 bar | 250 bar |
| Other | ||
| Factory option | Standard | Extended hydraulic function & cylinder protection |
| Telescopic arm | No | No |
| Range of wireless transmission | Up to 300 m | Up to 300 m |
| Signal transmission | Radio/cable | Radio/cable |
| Radio | 2.4 GHz | 2.4 GHz |
| Dimensions | ||
| Reach (up) | 4.4 m | 4.4 m |
| Reach (forward) | 3.7 m | 3.7 m |
| Product size length | 1,932 mm | 1,932 mm |
| Product size width | 771 mm | 771 mm |
| Product size height | 1,215 mm | 1,215 mm |
| Weight (complete product w/o side packed articles) | 985 kg | 985 kg |
Related products
-
Husqvarna-Wall and Wire Saw
Husqvarna WS 482 HF
-

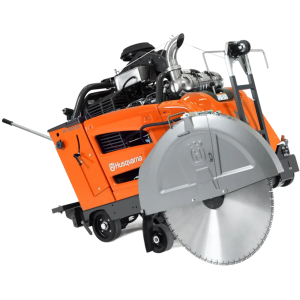

Husqvarna-Floor Saw
Husqvarna FS 7000 DL
-

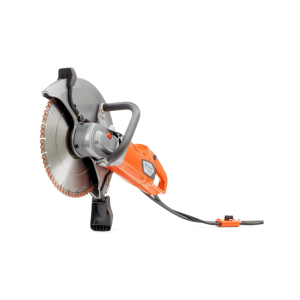

Husqvarna-Concrete Cutters
