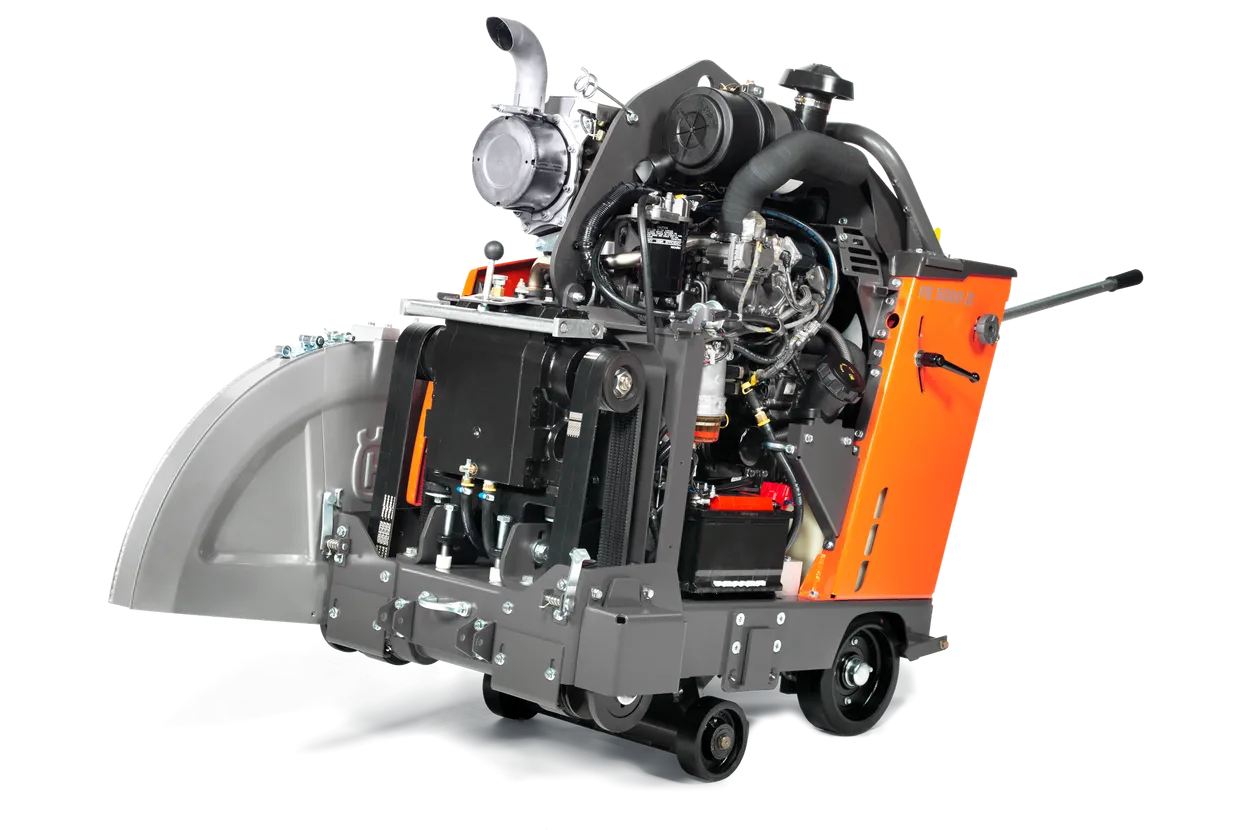

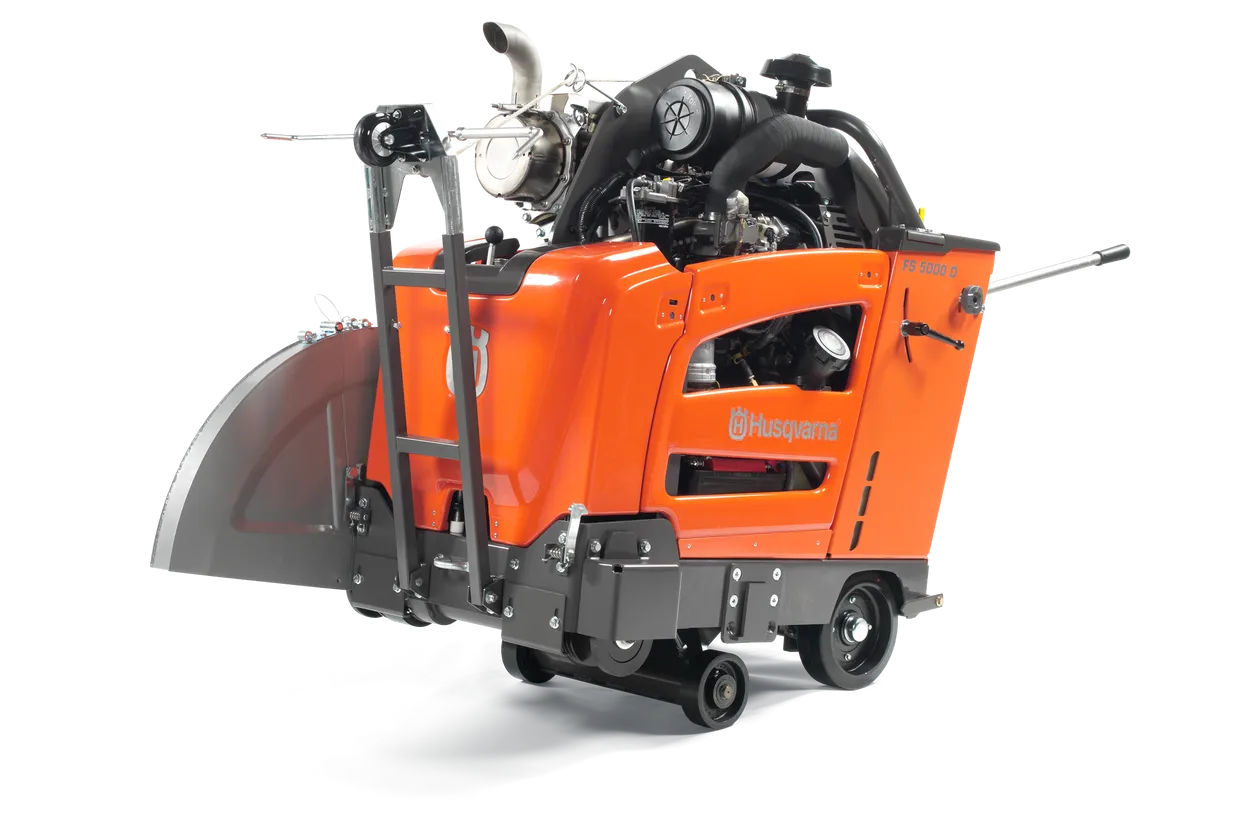

Husqvarna FS 5000 D
| Output power (As rated by the engine/motor manufacturer) | 35.5kW |
|---|---|
| Blade diameter, max | 900mm |
| Cutting depth, max | 374mm |
Description:
- owerful and fuel-efficient
- Low emissions

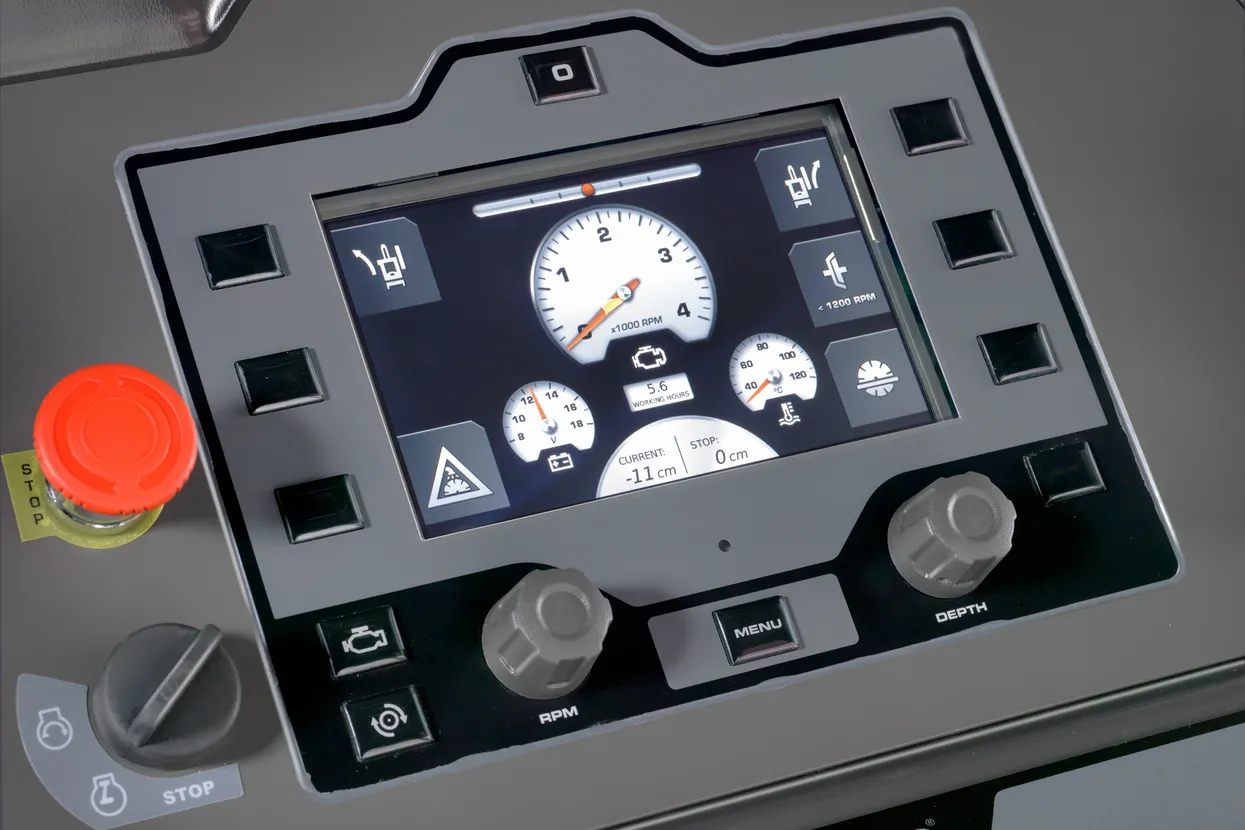

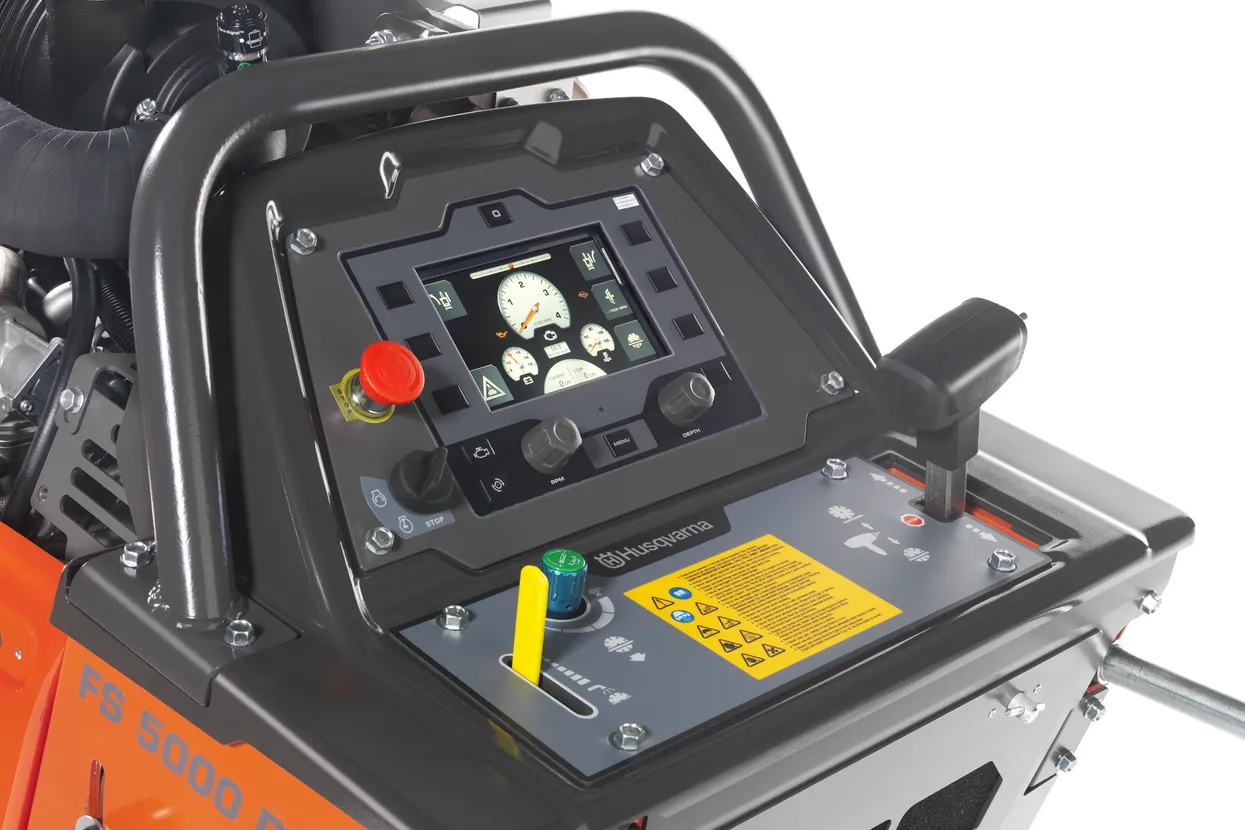

- Intuitive and ergonomic control panel
- Easy adjustment of tracking for straight cuts
- Powerful and productive
- Ergonomic

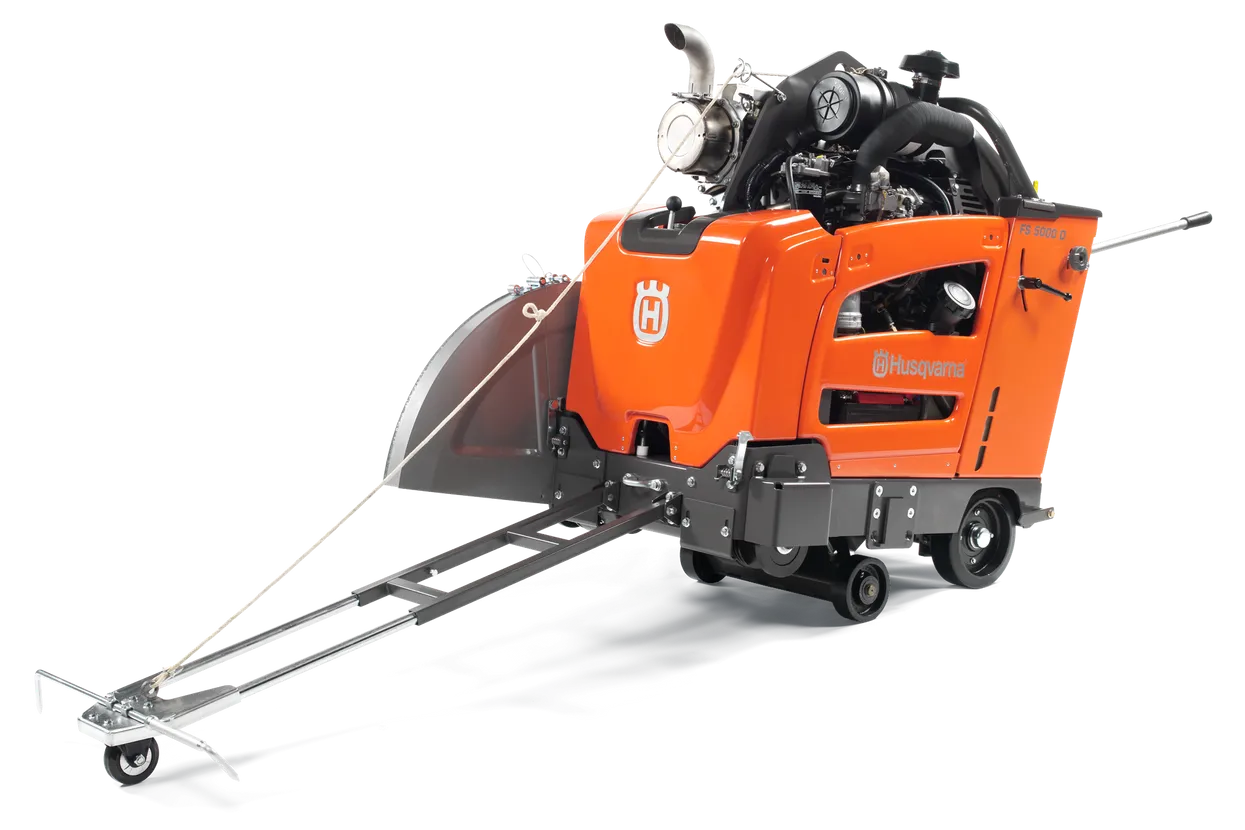

- Adjustable and telescopic pointer

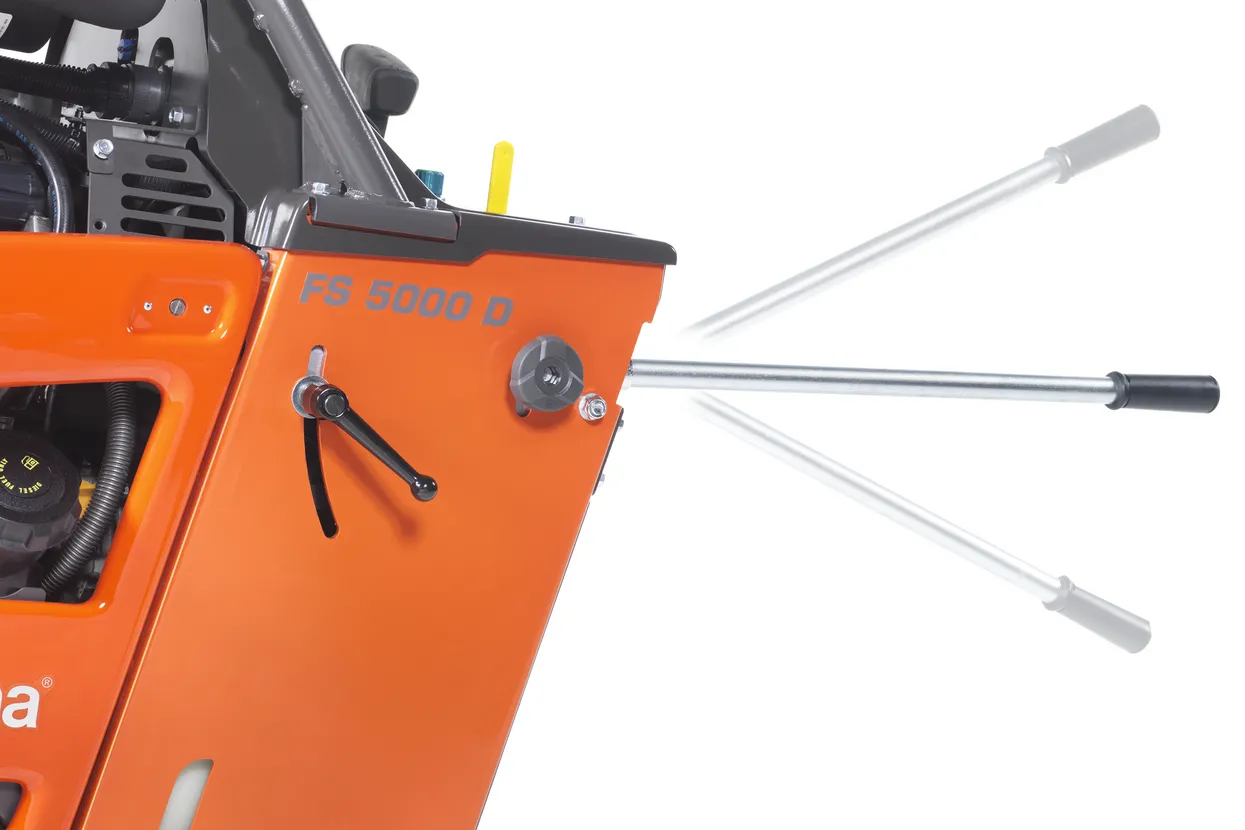

- Adjustable handles
- Convenient transport between truck and work site

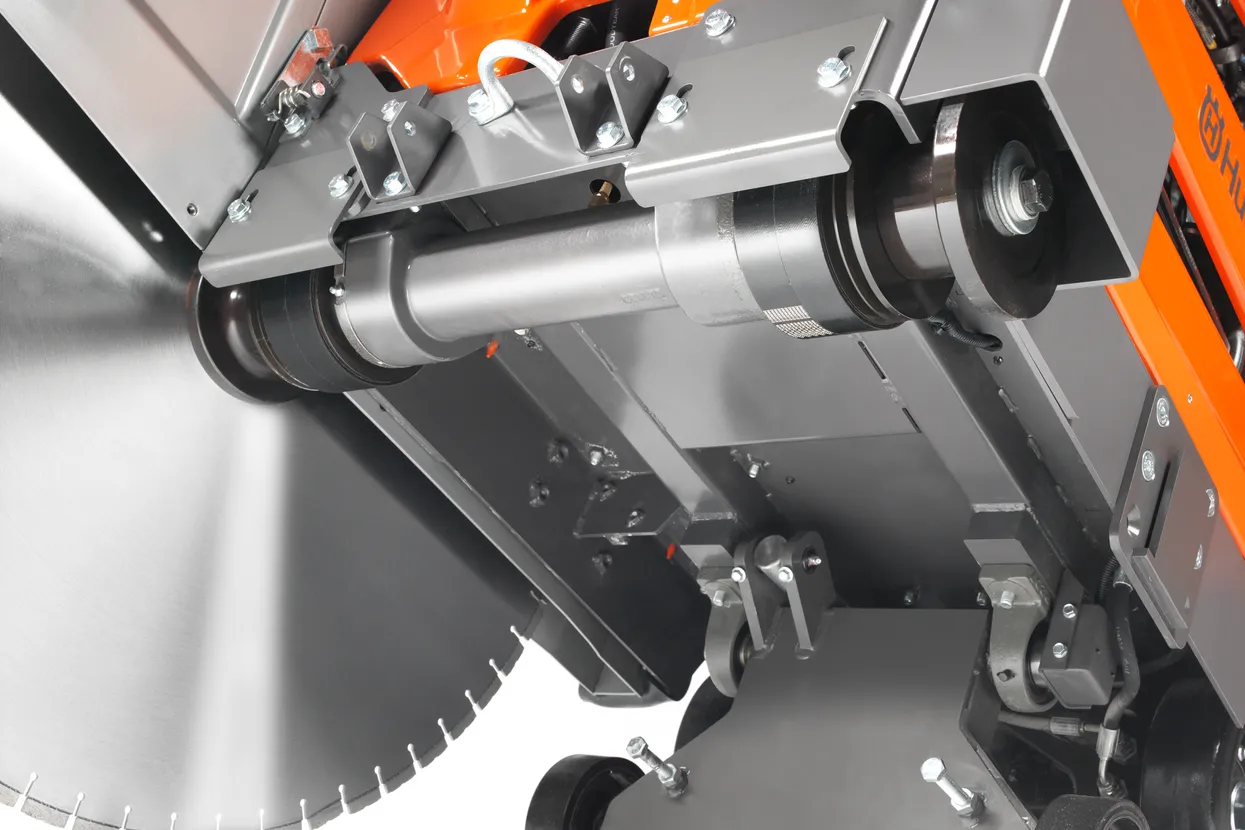

- Quick dis-engagement at blade slam
- Easy assembly of blade guard
- Easy to operate
- Optimised display visibility
- Automatic depth stop
- Low maintenance
- Highly versatile 3-speed version
- Self-propelled
- Optimised weight distribution

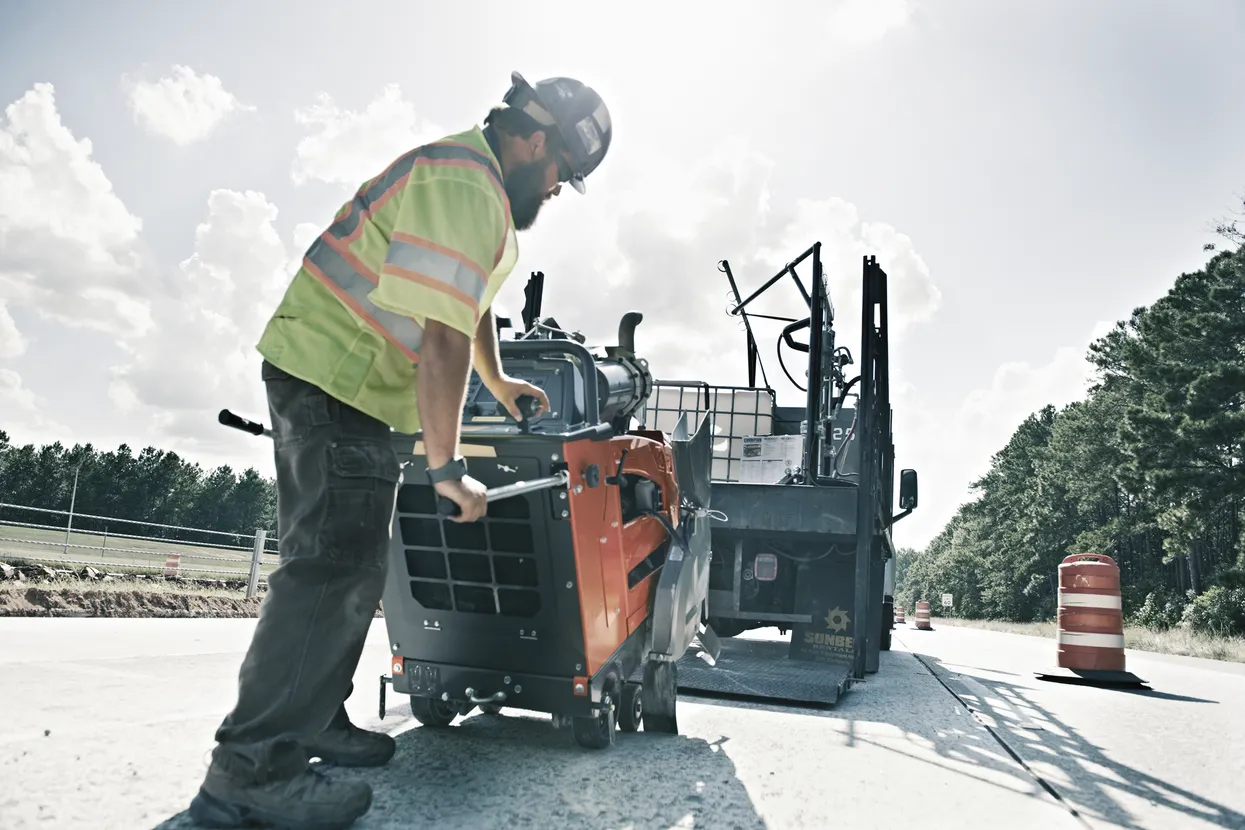

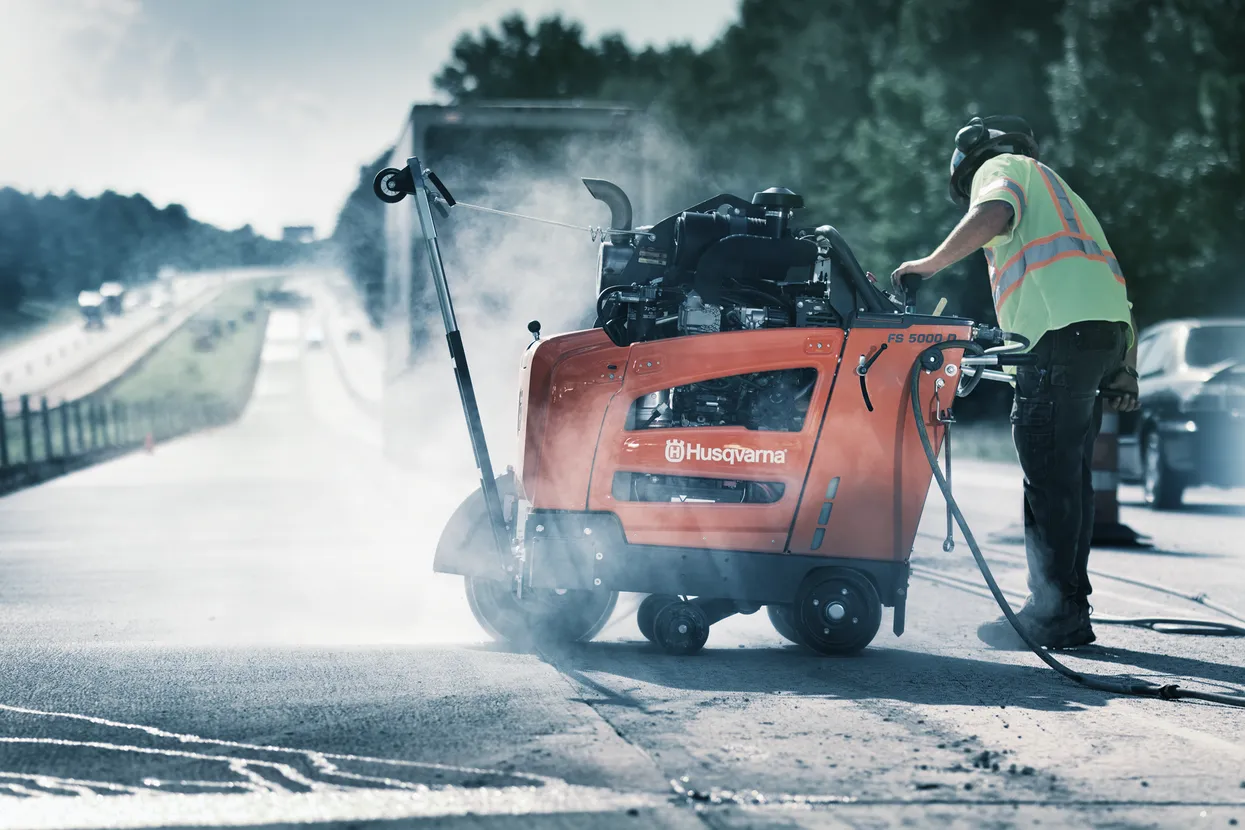

Our modern FS 5000 D is a powerful diesel walk-behind floor saw with low emissions compliant with Tier 4 and Stage V regulations. The product’s compact size, weight and balance is optimised for high production in service work applications cutting asphalt and concrete. With an impressive level of sustainable torque from the Yanmar diesel engine, it maximise production rates in the toughest conditions and contributes to a healthier working environment. The modern, service-friendly design, ergonomic controls and electronic support systems are highly intuitive, with focus on operator efficiency and convenience. The product is available with single speed or with 3-speed gearbox, as well as blade clutch, electronic tracking system on the rear axle, 5th wheel, light kit, water pump kit and weight kits.
Quantity:
Specifications:
|
All specifications FS 5000 D |
FS 5000 D FLOOR SAW FS 5000 D 48 hp | 900mm | CE | FP 3SPD ETRK w/cl 967 20 73‑40 |
FS 5000 D FLOOR SAW FS 5000 D 48 hp | 750mm | CE | FP 3SPD ETRK w/cl 967 20 73‑38 |
FS 5000 D FLOOR SAW FS 5000 D 48 hp | 500mm | CE | FP ETRK w/cl 967 20 73‑39 |
|---|---|---|---|
| Engine | |||
| Motor/engine manufacturer | ヤンマー | ヤンマー | ヤンマー |
| Output power (As rated by the engine/motor manufacturer) | 35.5 kW | 35.5 kW | 35.5 kW |
| Engine cooling | Water | Water | Water |
| Fuel tank volume | 24.5 l | 24.5 l | 24.5 l |
| Number of strokes | 4-stroke engine | 4-stroke engine | 4-stroke engine |
| Cylinders | 4 | 4 | 4 |
| Power source | Diesel | Diesel | Diesel |
| Cutting equipment | |||
| Cutting depth, max | 374 mm | 312 mm | 193 mm |
| Blade diameter, max | 900 mm | 750 mm | 500 mm |
| Arbor diameter | 25.4 mm | 25.4 mm | 25.4 mm |
| Blade depth control | Electric hydraulic | Electric hydraulic | Electric hydraulic |
| Transmission | |||
| Number of gearbox speeds | 3 | 3 | 1 |
| Transmission speed forward | 37.19 m/min | 37.19 m/min | 37.19 m/min |
| Dimensions | |||
| Product size length | 1,753 mm | 1,753 mm | 1,753 mm |
| Product size width | 880 mm | 880 mm | 880 mm |
| Product size height | 1,332 mm | 1,332 mm | 1,332 mm |
| Weight (complete product w/o side packed articles) | 771 kg | 771 kg | 771 kg |
