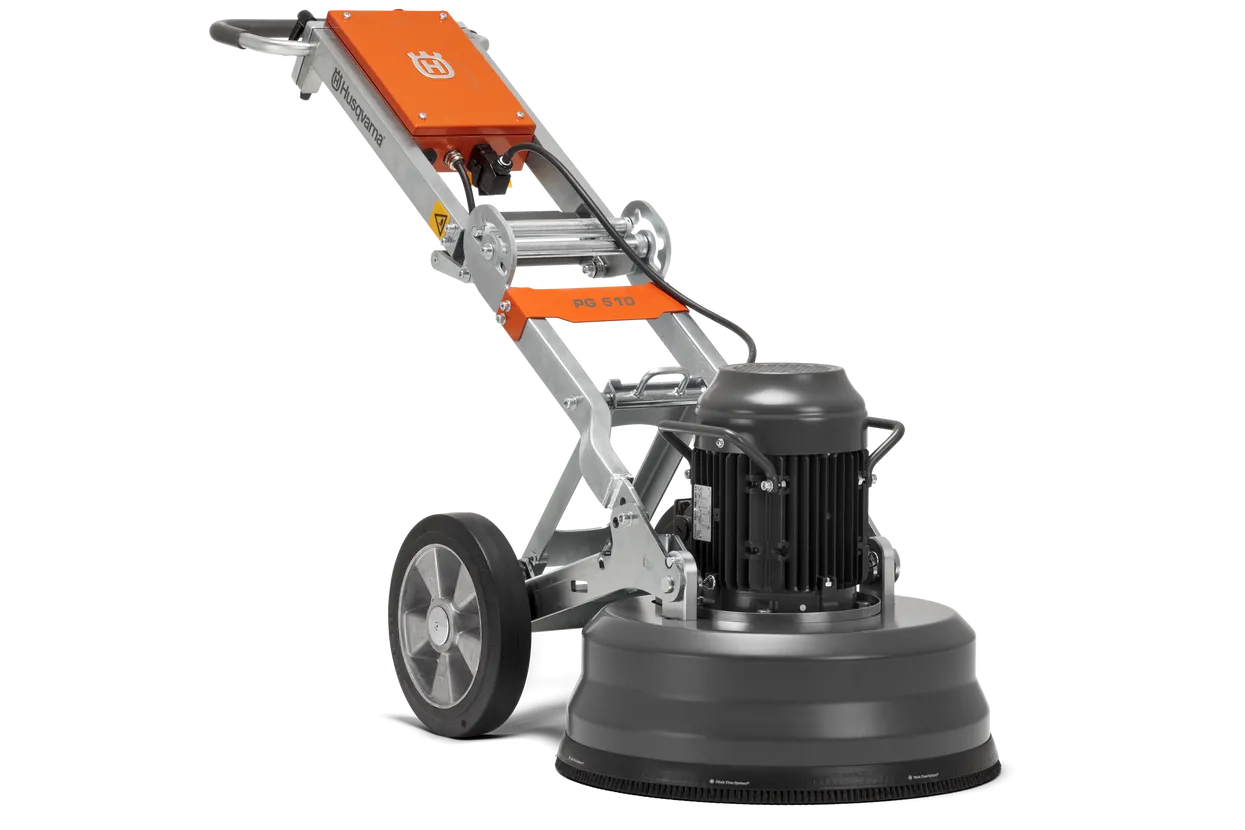

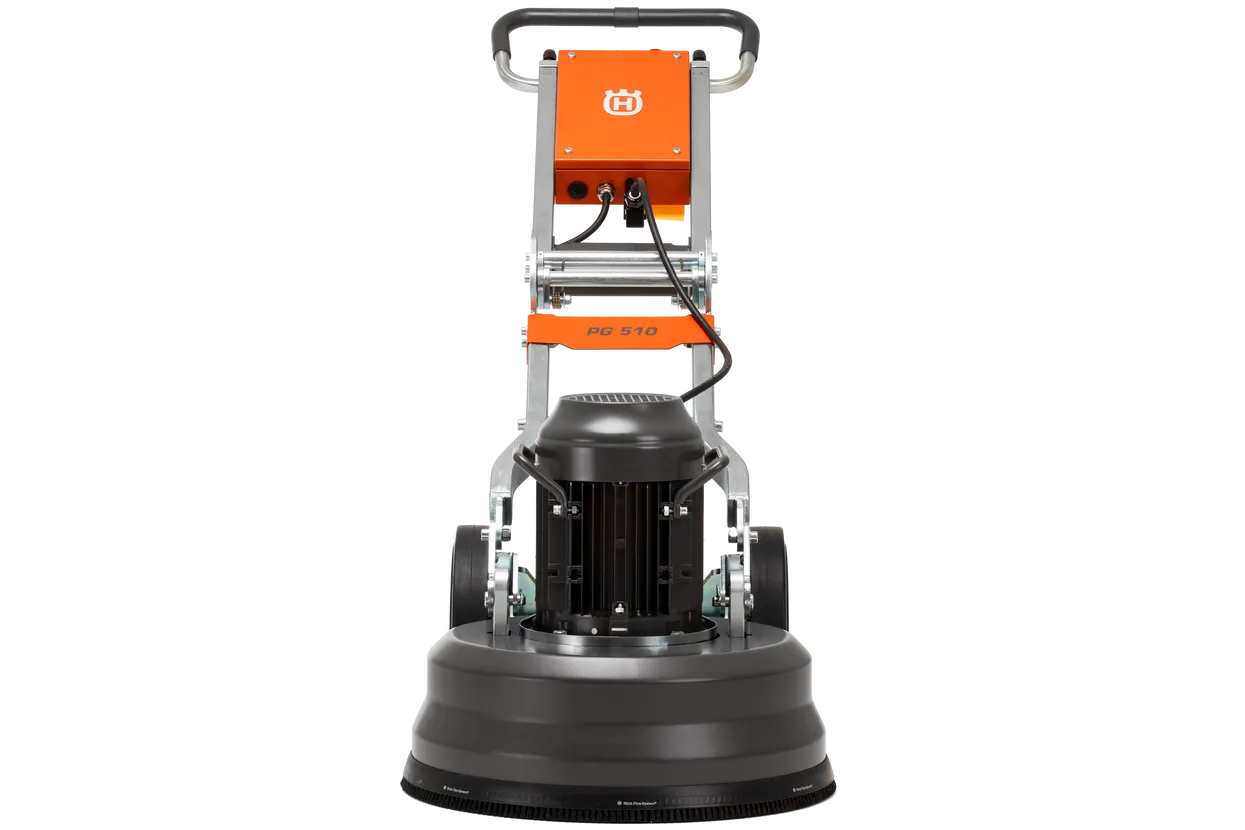

Husqvarna PG 510
| Output power (As rated by the engine/motor manufacturer) | 4kW |
|---|---|
| Grinding width | 515mm |
| Weight (complete product w/o side packed articles) | 133kg |
Description:
- Easy to use
- Efficient dust management
- Easy to transport and set-up
- Planetary operation
- Sealed grinding head
- Time saving tool change
- Redi Lock®

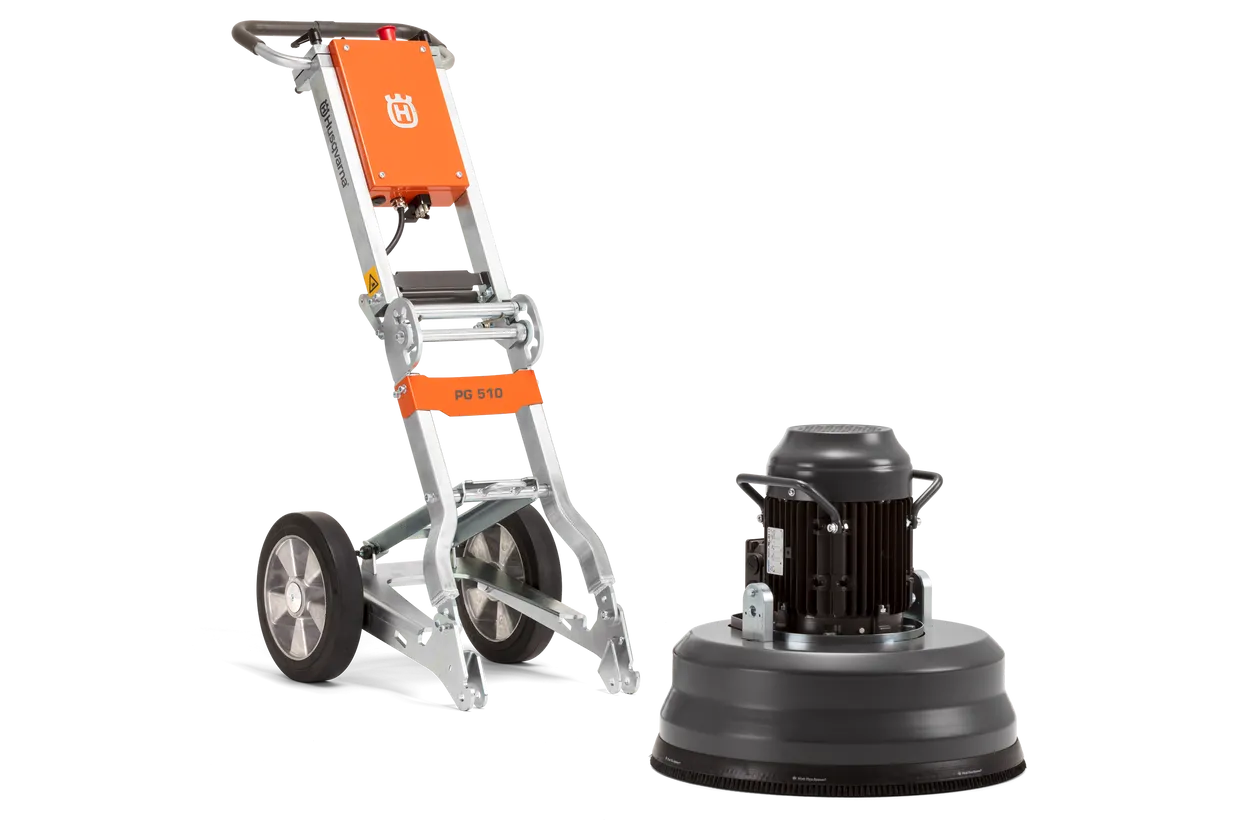

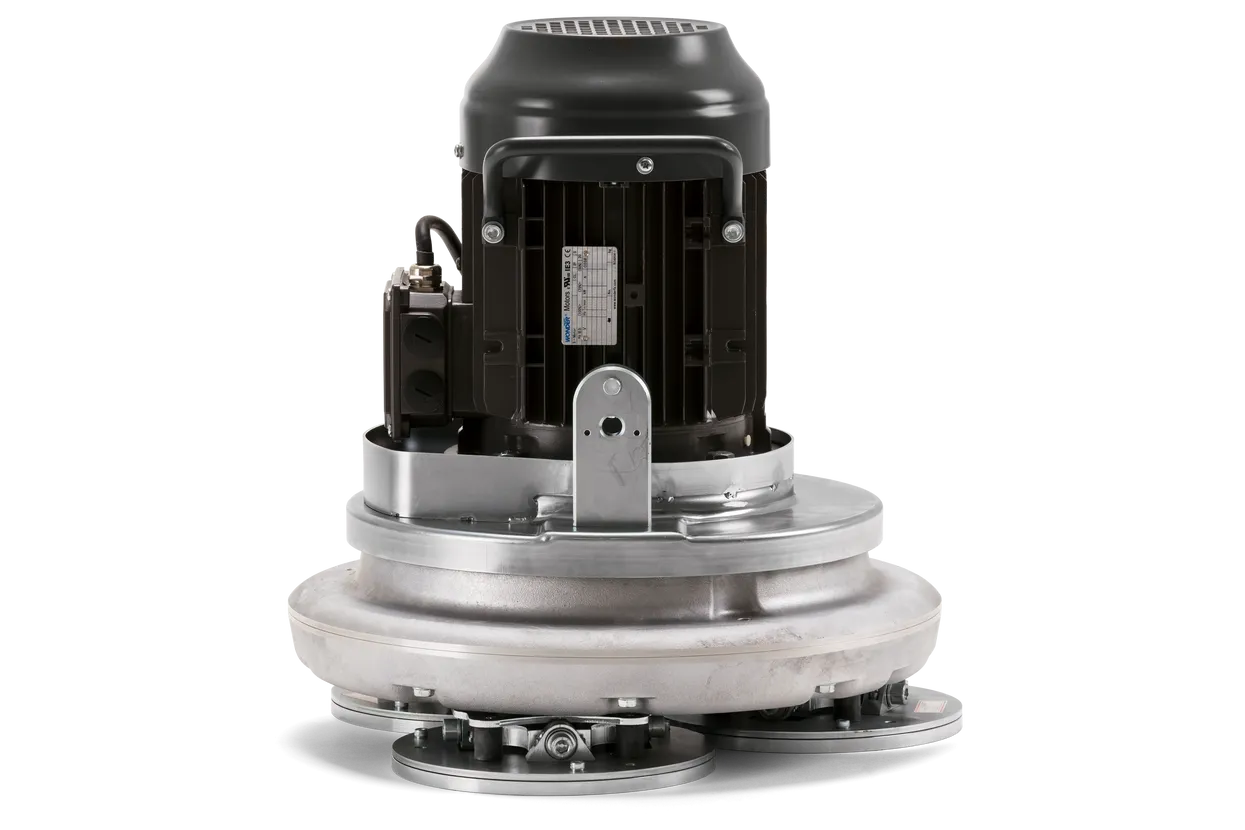

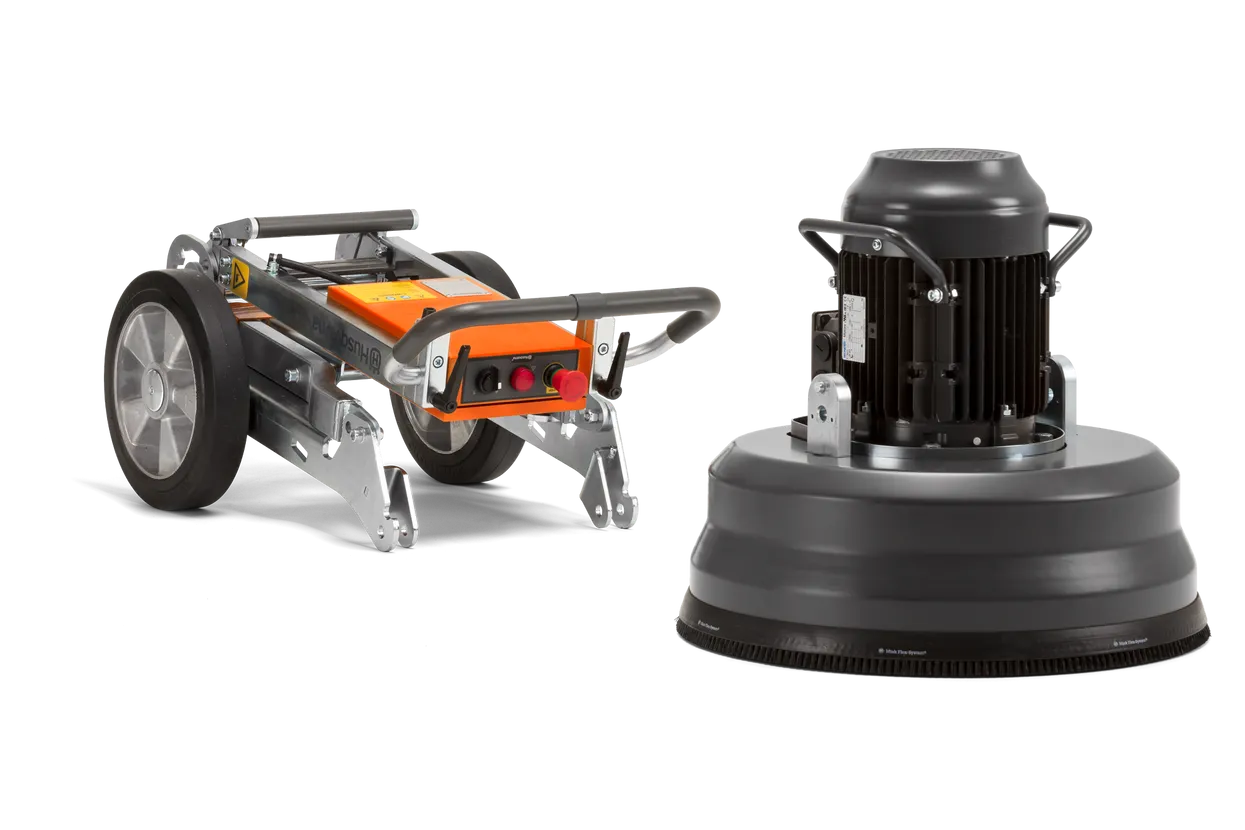

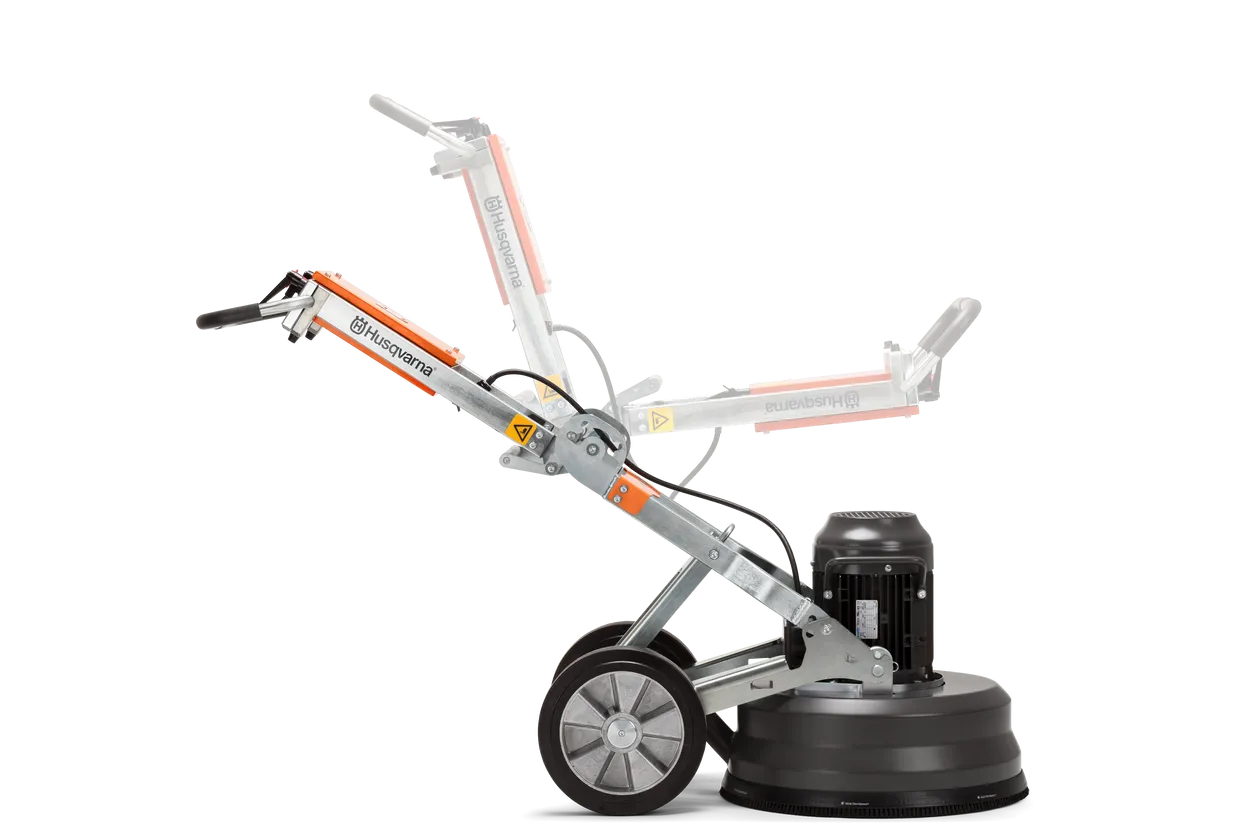

The PG 510 is a planetary floor grinder with three grinding discs and a total grinding width of 515 mm. It is suitable for removing coatings, grinding and polishing concrete, etc. The grinding head on the PG 510 is effectively sealed to keep dust and moisture out. This greatly extends the lifetime of the bearings and belts. The PG 510 is ideal as a rental machine and suitable for both professional and semi-professional work. Quick-release couplings allow the grinding head to be separated from the chassis which can then be easily folded for transport. The grinder also has a digital hour meter.
Quantity:
Specifications:
|
All specifications PG 510 |
PG 510 FLOOR GRINDER PG 510 | 380-420 V | 3 ph | 50 Hz | EU 967 93 20‑01 |
PG 510 FLOOR GRINDER PG 510 | 220-240 V | 1 ph | 50 Hz | EU 967 93 20‑02 |
|---|---|---|
| Engine | ||
| Output power (As rated by the engine/motor manufacturer) | 4 kW | 2.2 kW |
| Motor | ||
| Power source | Corded | Corded |
| Phases | 3 ph | 1 ph |
| Voltage | 380-420 V | 220-240 V |
| Rated current | 9 A | 13 A |
| Frequency | 50 Hz | 50 Hz |
| Pins | 5 | 2 |
| Equipment | ||
| Grinding width | 515 mm | 515 mm |
| Number of grinding discs | 3 | 3 |
| Direction of rotation | One direction | One direction |
| Grinding disc diameter | 230 mm | 230 mm |
| Grinding disc speed max | 558 rpm | 542 rpm |
| Grinding pressure, max | 79 kg | 66 kg |
| Dimensions | ||
| Product size length | 1,525 mm | 1,525 mm |
| Product size width | 555 mm | 555 mm |
| Product size height | 950 mm | 950 mm |
| Weight (complete product w/o side packed articles) | 133 kg | 120 kg |
