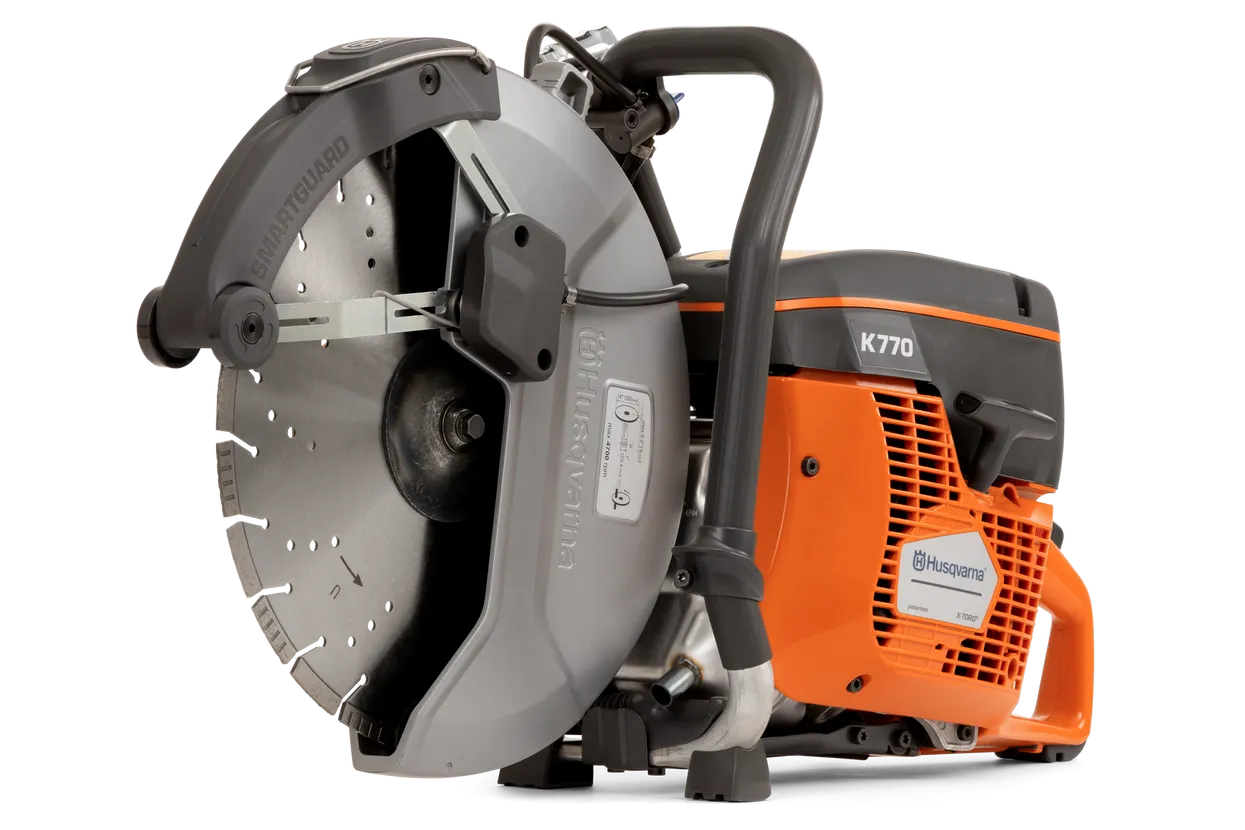

Husqvarna K 770 SmartGuard

Category: Husqvarna-Concrete Cutters

Output power	3.7kW
Cutting depth, max	125mm
Blade diameter, max	350mm
Weight (complete product w/o side packed articles)	11.2kg

Description:

Operational safety
Easy to inspect
Purposeful design
Easy and optimal belt tensioning
Light and powerful
Heavy-duty cutting arm
Long service intervals
Digital ignition with optimised timing
Exceptionally low vibrations
Easy to start
Maintenance-free air filter
High power with less fuel
Optimised engine performance
Less slurry and low water consumption
Easy to change blade guard position
Fits multiple blade bushings
Efficient power performance
Smooth blade stop
Maintenance-free starter
Reduced wear
Active Air Filtration™
Anti-vibration system
DuraStarter™
Poly-V belt
SmartCarb™
Asphalt
Blocks, curbstones and pavers
Burying of cables
Cast concrete
Floors and walls

Husqvarna K 770 SmartGuard is a powerful all-round power cutter with features that make it one of the best power cutters on the market. Equipped with SmartGuard, an extended blade guard design which reduces the likelihood of accidents and circumstances when a kickback may occur as it emphasises correct technique and correct cutting zone. The semi-automatic SmartTension™ system allows for optimal power transmission, minimum wear and maximum belt life. The light weight, outstanding power-to-weight ratio, the reliable start and exceptionally low vibrations mean less strain and maximised productivity.

Quantity:

Specifications:

All specifications K 770 SmartGuard™	K 770 SmartGuard™ POWER CUTTER K 770 SmartGuard 14″ \| Blade Incl 970 46 00‑02	K 770 SmartGuard™ POWER CUTTER K 770 SmartGuard 12″ \| Blade Incl 970 49 48‑01
Engine
Output power	3.7 kW	3.7 kW
Max engine/motor	9,300 rpm	9,300 rpm
Maximum power speed	9,000 rpm	9,000 rpm
Cylinders	1	1
Number of strokes	2-stroke engine	2-stroke engine
Exhaust emissions (CO2 EU V)	711 g/kWh	711 g/kWh
Power source	Petrol	Petrol
Cutting equipment
Cutting depth, max	125 mm	100 mm
Blade diameter, max	350 mm	300 mm
Arbor diameter	25.4/20 mm	25.4/20 mm
Blade thickness, max	5 mm	5 mm
Peripheral speed, max	90 m/s	80 m/s
Coolant	Wet	Wet
Dimensions
Product size length	769 mm	735 mm
Product size width	225 mm	225 mm
Product size height	429 mm	429 mm
Weight (complete product w/o side packed articles)	11.2 kg	10.8 kg
Sound and noise
Sound power level, guaranteed (LWA)	115 dB(A)	115 dB(A)
Sound pressure level at operators ear	101 dB(A)	–
Vibration
Vibrations left/front handle	2.1 m/s²	2.4 m/s²
Vibrations right/rear handle	2 m/s²	2.1 m/s²
