Husqvarna WS 220

Starter blade diameter, max

600mm

Blade diameter, max

900mm

Max spindle torque

68Nm

Cutting depth, max

395mm

Description:

  • Easy to transport and setup
  • Efficient and fast sawing
  • High power-to-weight ratio

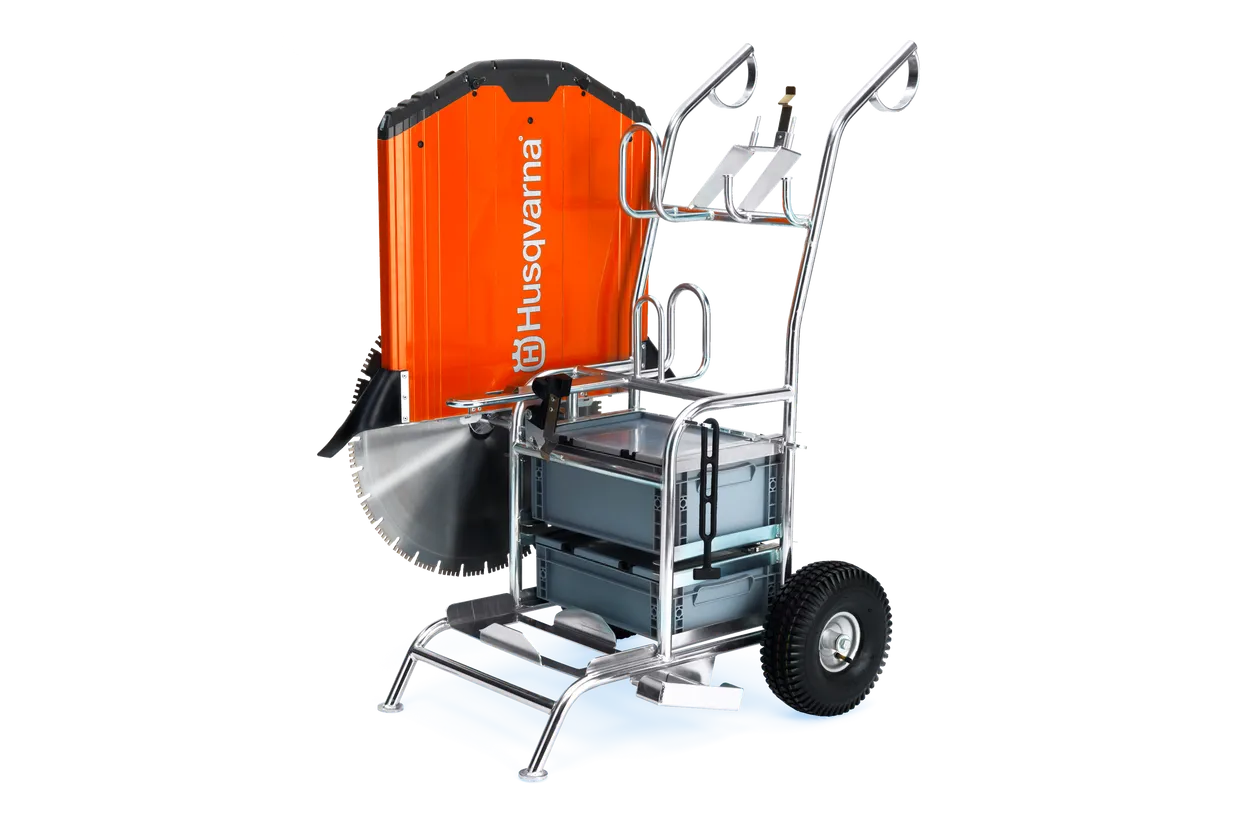

  • Convenient transport trolley
  • Easy setup with modular track system
  • Quick and easy change of blade direction
  • User-friendly wireless remote control
  • Sawing on both sides of the track
  • Straight cuts with minimal wear
  • Retains high power for efficient sawing
  • Durable and light blade guard
  • Optimised speed for each cutting application
  • Ideal in smaller or mid-size sawing jobs
  • Sawing in reinforced concrete and brick

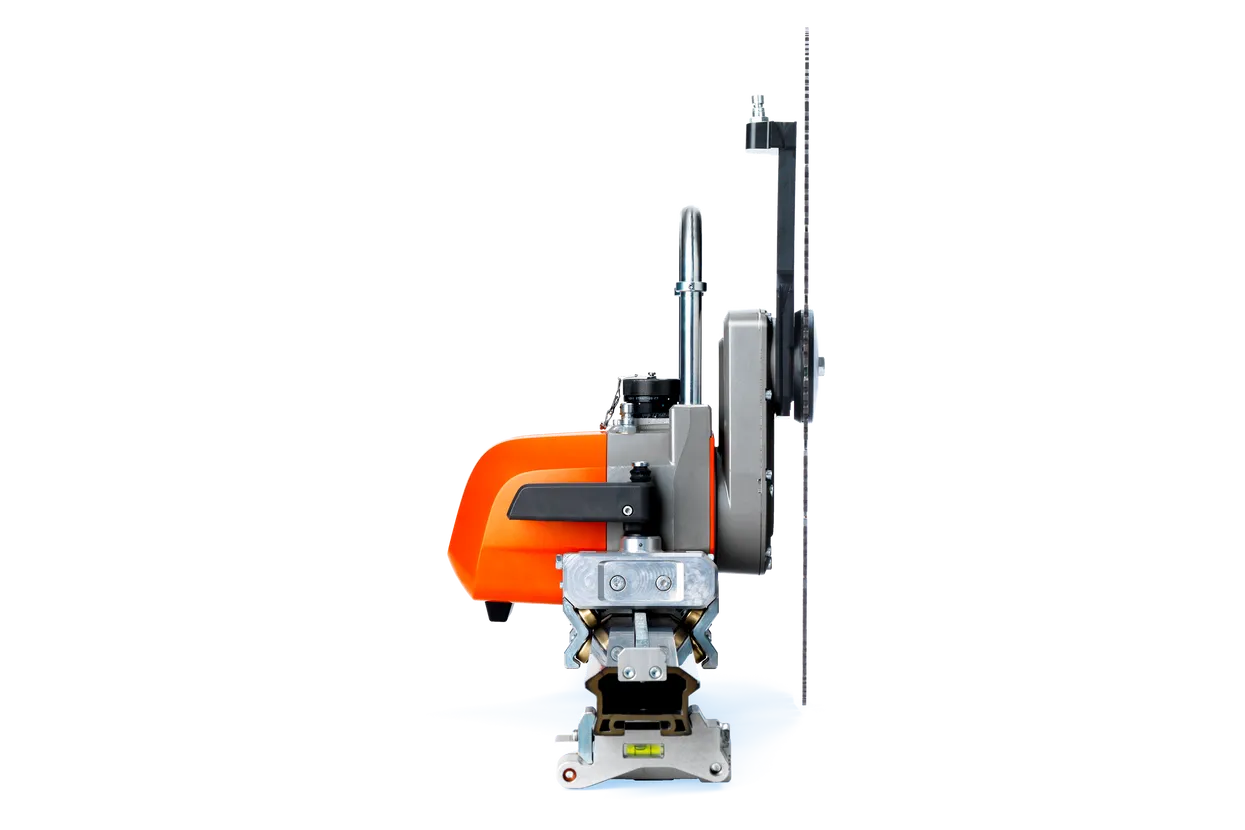

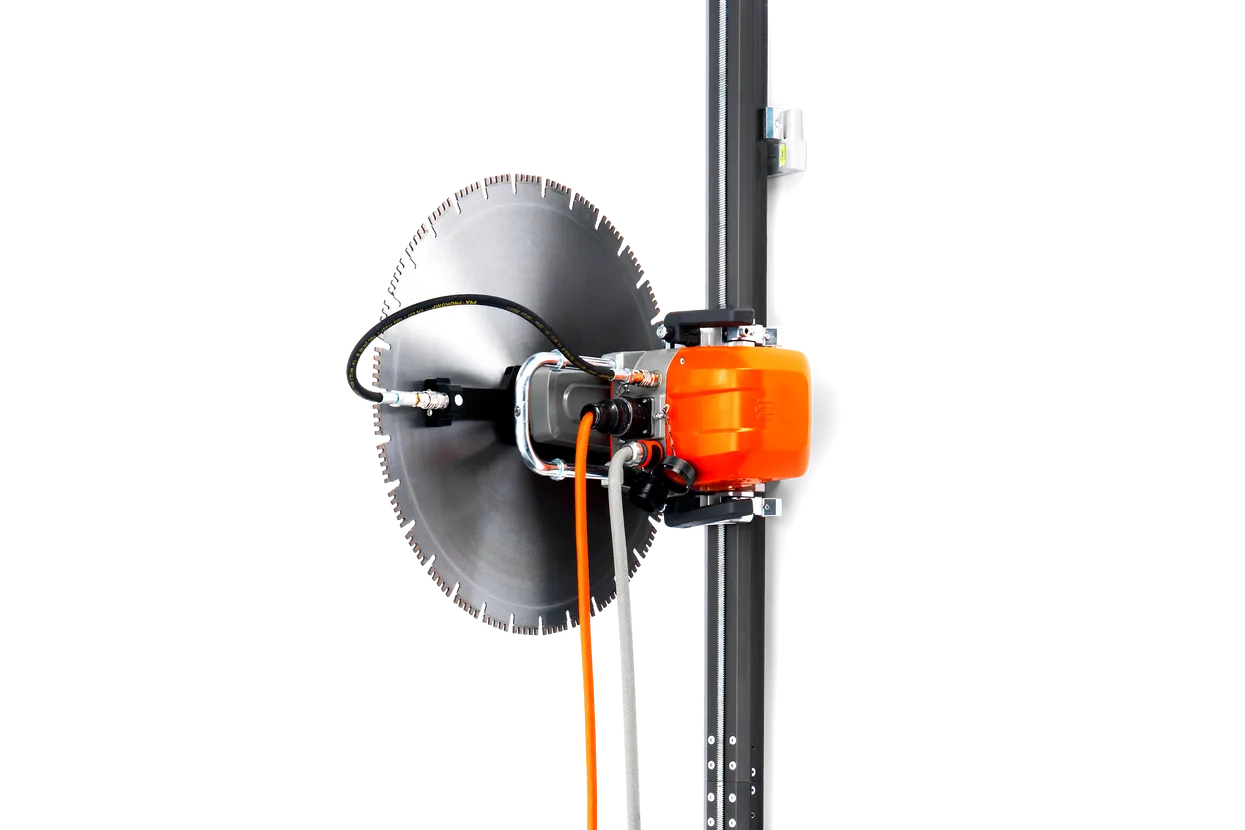

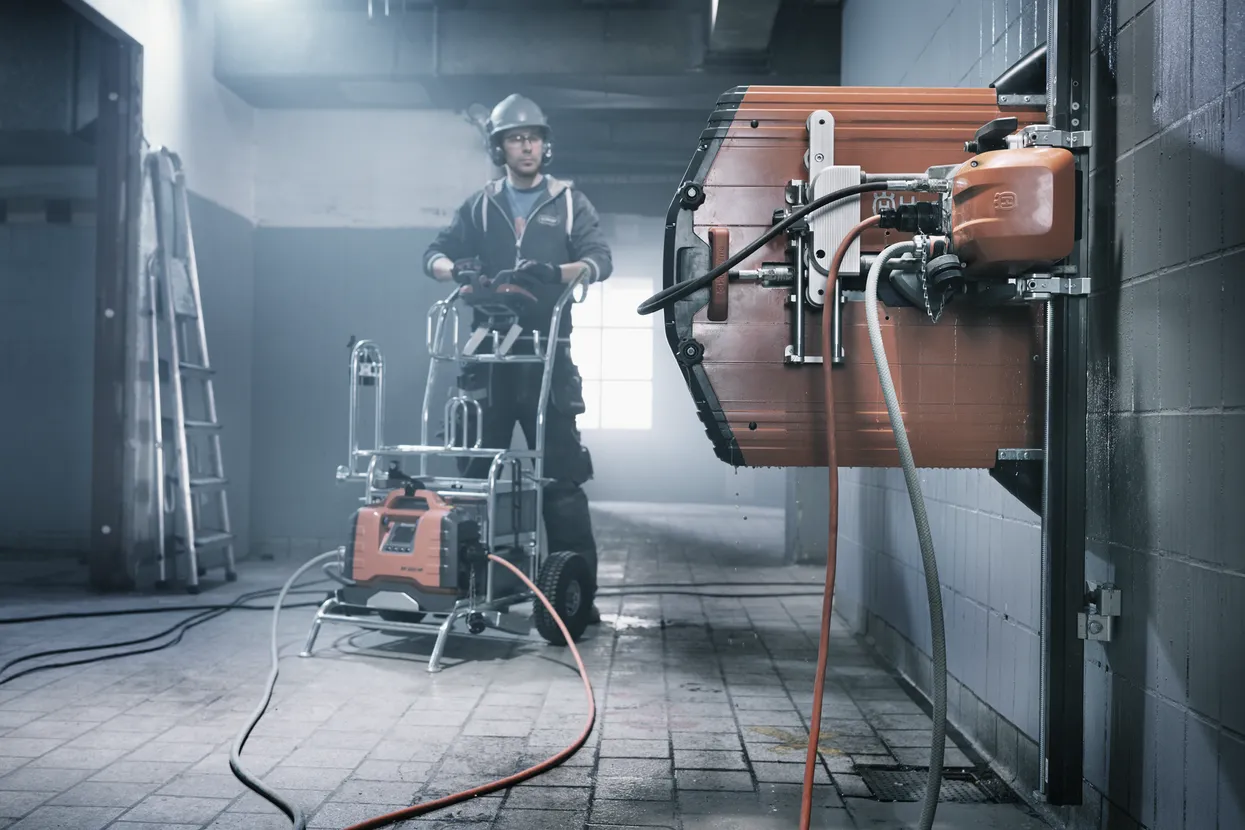

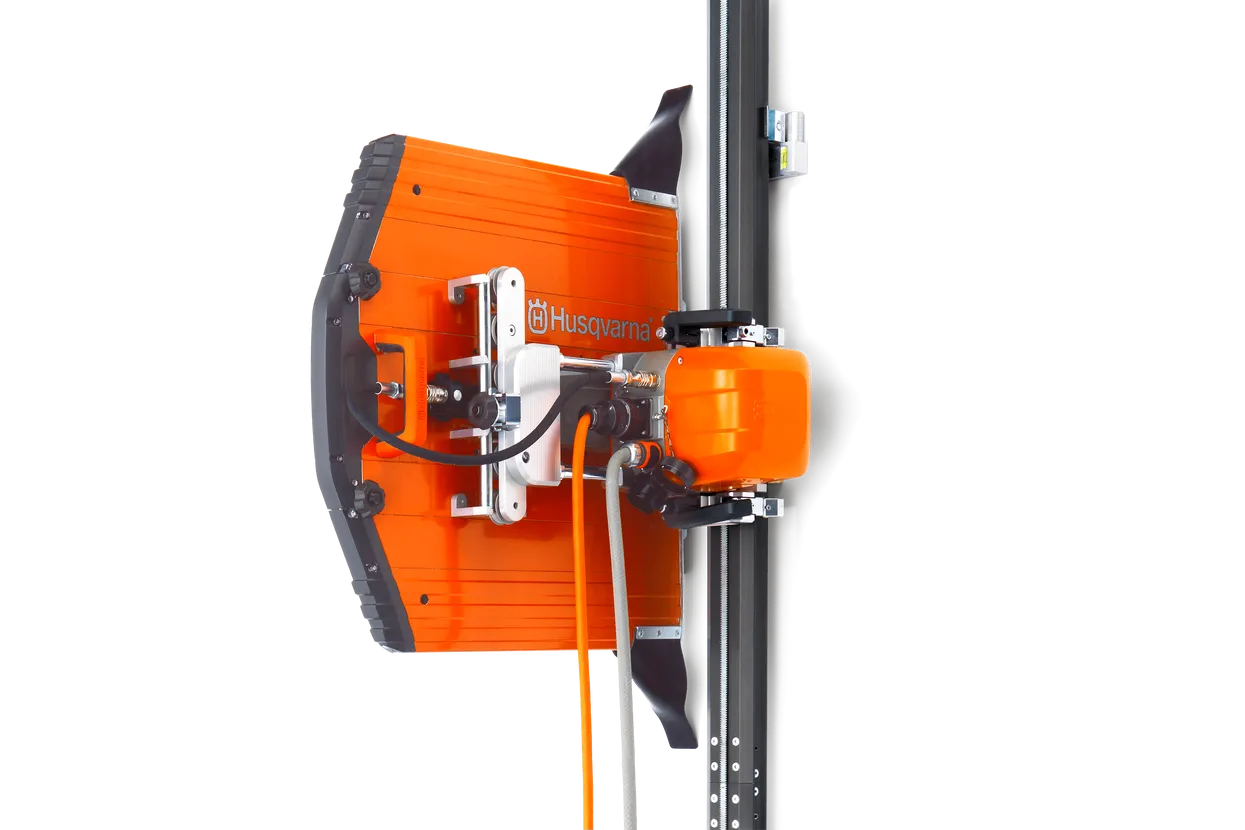

WS 220 is a lightweight electric wall sawing system with new generation high frequency PRIME™ technology. WS 220 has a high power-to-weight ratio and is unbeatable in terms of efficiency for smaller or mid-size jobs with cutting depth up to 395 mm. It can be operated with both 3-phase and 1-phase power source and is easy to use and transport with the included trolley.

Quantity:

Specifications:

All specifications

WS 220

WS 220 STD

967 20 87‑01

Engine
Output shaft RPM, max 1,150 rpm
Max spindle torque 68 Nm
Spindle starting torque 48
Rated current 16 A
Power source Corded
Cutting equipment
Arbor diameter 60/25.4 mm
Blade diameter, max 900 mm
Blade diameter, min 500 mm
Cutting depth, max 395 mm
Starter blade diameter, max 600 mm
Transmission
Number of gearbox speeds 1
Product data
Water flow, min 3.5 l/min
Water pressure, max 8 bar
Water temp at min flow, max 35 °C
Dimensions
Product size length 286 mm
Product size width 350 mm
Product size height 412 mm
Weight (complete product w/o side packed articles) 92 kg
Weight saw unit 19 kg
Sound and noise
Sound power level, guaranteed (LWA) 105 dB(A)
Sound power level, measured 104 dB(A)
Sound pressure level at operators ear 104 dB(A)
